WTF型星空登录官网

产品简介

WTF-30星空登录官网 WTF-30 Concrete Reclaimer插入图片产品介绍(Product Introduction)随着混凝土行业污染加剧的国情,**代WTF系列星空登录官网应运而生,该星空登录官网的诞生不仅为客户解决 了环保要求,也为企业创···

详细介绍在线留言

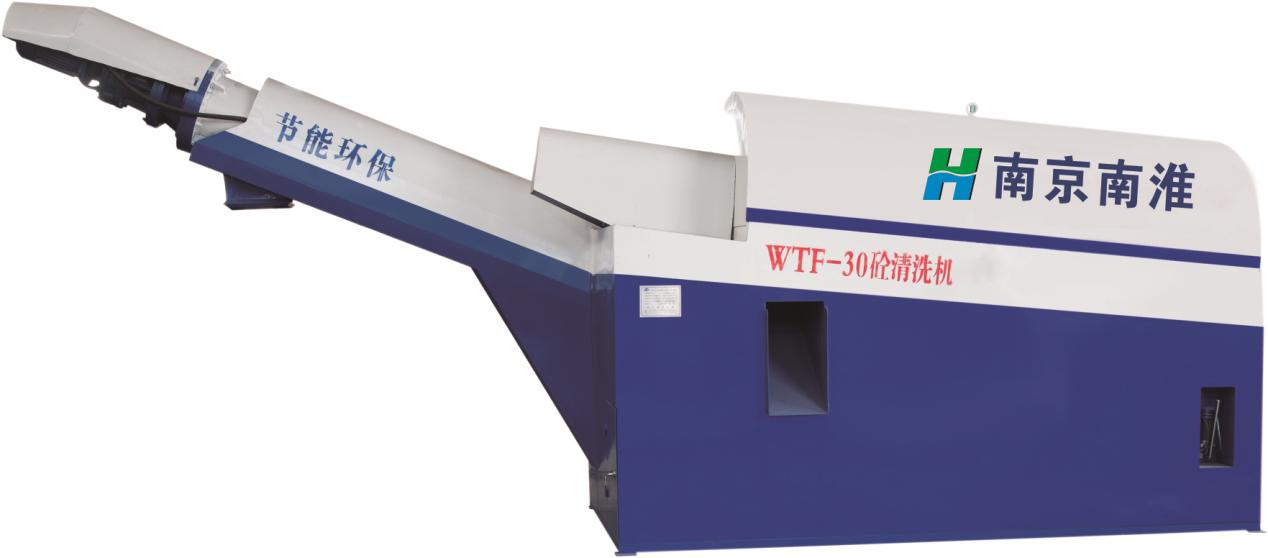

WTF-30星空登录官网 WTF-30 Concrete Reclaimer

插入图片

产品介绍(Product Introduction

随着混凝土行业污染加剧的国情,**代WTF系列星空登录官网应运而生,该星空登录官网的诞生不仅为客户解决 了环保要求,也为企业创造了额外的经济效益。实现了绿色生产与利益*大化的目标。

With the national condition of increasingly serious pollution in the concrete industry, the first generation WTF series sand and gravel separator has come into being. The birth of the sand and gravel separator has not only solved the environmental protection requirements for customers, but also created the additional economic benefits for the enterprise. This has thus achieved the goal of green production and maximization of benefits.

性能与特点:

Performance and features:

1,该机在设计上结合了德国的滚筒分离式和日本的螺旋筛式的结构特点,操作简单可靠(手动与自动)

The separator is designed to combine the features of German drum separation and Japanese spiral screen structure, which is simple and reliable for operation (manual and automatic)

2,高性能一次处理方式,骨料分级,用水量少。High-performance one-time processing, aggregate grading requires less water.



3、污水废料全面回收利用,实现零排放,大大节省资源。

Sewage and waste are fully recycled and utilized to achieve zero emissions, thus to greatly save resources.

4、易损件做高强化处理,延长使用寿命。

The wearing parts are highly strengthened to prolong their service life.

5、分离能力大于30T/hSeparation capacity is greater than 30T/h.

6、本机型分为单车位,双车位,三车位,可满足15-100台搅拌车清洗。

This model of separator is divided into single parking space, double-parking space and three parking spaces, which can meet the cleaning of 15-100 mixers.



主要参数(Main Parameters

1

分离机规格型号Type)

WTF-I型分离机

WTF-II型分离机

WTF-III型分离机

2

处理能力Screening capability)

>30m3/h

>30m3/h

>30m3/h

3

分石尺寸Stone size screened)

>6mm

>6mm

>6mm

4

分砂尺寸Sand size screened)

<6mm

<6mm

<6mm

5

搅拌车数量(Mixing trucks number)

15——30台

30——60台

60——100台

6

设备总功率(Power)

14kw

17kw

20kw

7

设备总重量(Weight)

4500kg

5000kg

5500kg
